Max Photonics MA1-65 Laser Welder Package
Max_Photonics_MA1_Laser_Torch
Max_Photonics_MA1_Laser_Torch_Close_Up_1
Max_Photonics_MA1_Laser_Torch_Close_Up_2

Max Photonics MA1-65 Laser Welder Package

Stock Code: 100000159708
£23,061.48 (exc VAT) per Each
Quantity: - +
FOUND IT CHEAPER? REQUEST PRICE MATCH

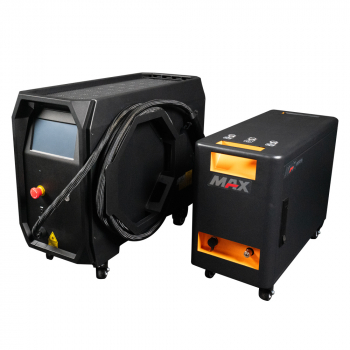

MA1-65 HANDHELD LASER WELDING MACHINE COMPLETE WITH WIRE FEEDER

The MA1-65 is a handheld 1500W laser welding machine suitable for welding up to 6.5mm thick metals, perfect for high production welding applications. Laser welding is up to 4 times faster than traditional welding techniques and is a game changer in the world of welding. The process of using laser is not only faster, but can improve weld aesthetics and is incredibly easy to use.

A wire feeder, feeds wire of 0.6–1.2mm along a guide tube and introduces it to the laser beam to introduce filler material, much like a MIG welder or a TIG cold wire feed. The machine takes 5 or 15Kg spools of wire.

The resulting welds created with laser are high strength as well as neat, with minimal post weld clean up. The heat affected zone from laser welding is generally smaller than using traditional methods too, so can increase weld strength. The lower temperatures achieved minimise warping in thinner materials.

Key Features

  • Portable design
  • Compact handheld welding torch
  • Stable performance and reliable quality
  • Six layers of safety protection
  • Simple operating system
  • Easy installation and operation
  • Bespoke wire feed unit
  • External interface with dual channel safety interlock
  • External interface suitable for automated applications
  • Includes 5.6m torch
  • Product demonstrations available

7"Touch Screen Simple and Easy to Use

  • Embedded with 32 pre set modes for various materials
  • Ability to store up to 32 user defined programs
  • Minimal training time needed for beginners to operate
  • the welding system
  • Synergic interface allows the user to select the material,
    plate thickness and joint configuration for quick set up
  • Advanced user menu for user defined set up for
    advanced operators
  • Detailed warning page for easy diagnosis
  • Full control over external wire feed system
  • Password protected advanced service menu
  • Fish scale welding mode
  • Easily switch between CW, pulse and shooting modes

Material & Welding Specification

MaterialOne Sided Limit Welding Seam
Stainless SteelUp to 6.5mm
Carbon SteelUp to 6.5mm
AluminiumUp to 5.5mm
Galvanized SteelUp to 6.5mm
BrassUp to 4.5mm
CopperUp to 3.0mm

FOR BESPOKE PACKAGE COMPONENT REQUIREMENTS PLEASE CONTACT US TO DISCUSS THE OPTIONS

CLICK HERE FOR FULL PRODUCT DETAILS & OPTIONS

BrandMax Photonics
Mains VoltageSingle Phase
CoolingAir
Torch Length5.6mtr
Wattage1500w
